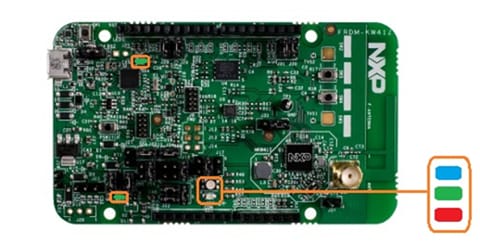

NXP FRDM-KW41Z

board ID deployment

The FRDM-KW41Z board is a  NXP FRDM-KW41Z This board provides a BLE radio interface and a 802.15.4 radio interface.

The FRDM-KW41Z board can reset, debug and program the ARM Cortex M0+ through the embedded debugger (OpenOCD) connected to the gateway USB port. This component also allows a UART connection to the M0. The input power source is configured through the power management.

IoT-LAB special configuration

The serial connection baudrate should be configured at 115200 bauds in the firmware.

Extensions with sensors

Nodes in Saclay site (frdm-kw41z-1 to frdm-kw41z-5) are equipped with an ST X-NUCLEO-IKS01A2 shield. This gives access to external sensors to the frdm-kw41z nodes:
