Nordic nRF51DK

board ID radio OS support deployment
nrf51dk BLE RIOT Zephyr Saclay 5

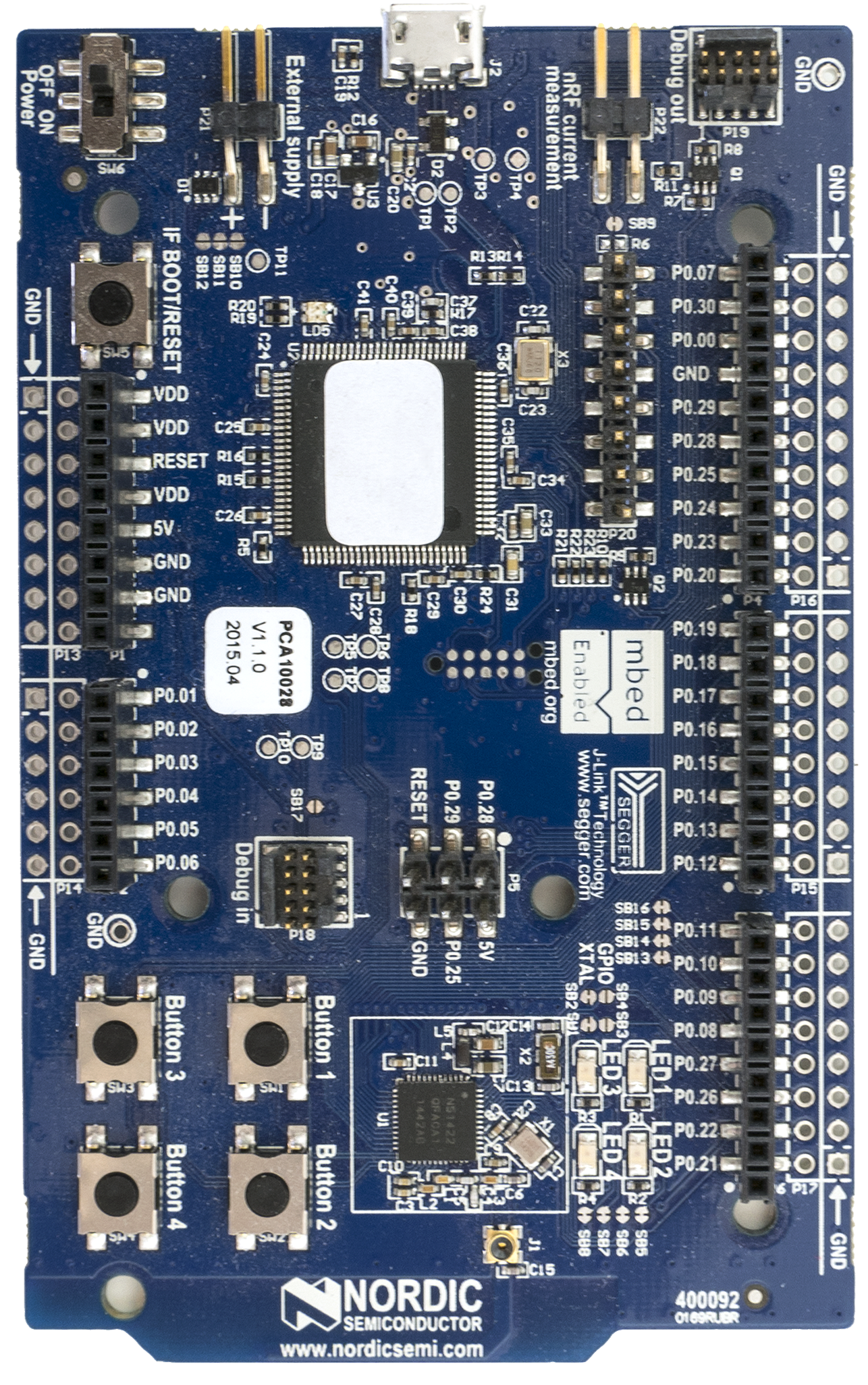

The NRF51DK board is a  Nordic nRF51DK This board provides a BLE radio interface.

The nRF51DK board can reset, debug and program the ARM Cortex M0 through the embedded debugger (OpenOCD) connected to the gateway USB port. This component also allows a UART connection to the M0. The input power source is configured through the power management.

IoT-LAB special configuration

The serial connection baudrate should be configured at 115200 bauds in the firmware.

Extensions with sensors

Nodes in Saclay site (nrf51dk-1 to nrf51dk-5) are equipped with an ST X-NUCLEO-IKS01A2 shield. This gives access to external sensors to the nrf51dk nodes:
